EVOLUTION Brick Cladding System

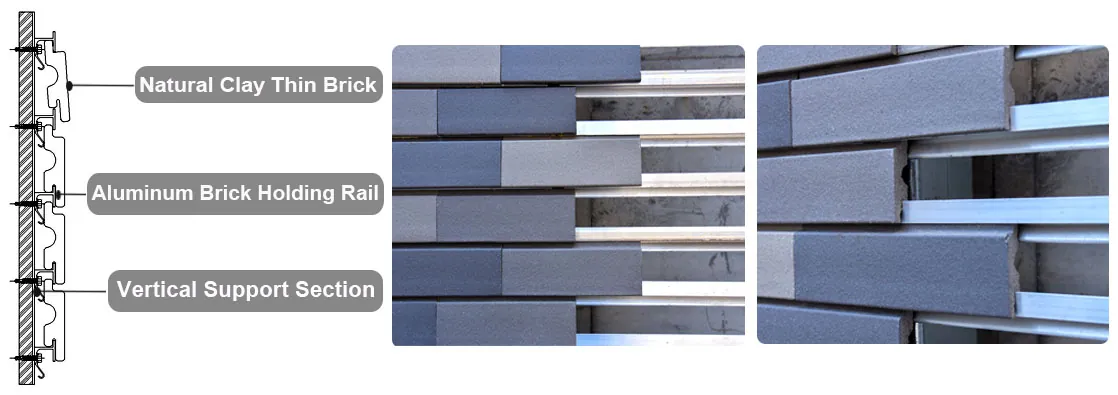

EVOLUTION™ Brick Cladding System is a lightweight, mechanically fixed façade solution that combines natural clay brick tiles with a versatile and efficient installation system. Constructed from galvanised steel framing or aluminium support systems, the assembly consists of horizontally fixed brick rails and vertical support sections. Specially profiled thin brick tiles are designed to securely interlock with the brick rails, allowing for fast, precise installation. The horizontal rails can be adjusted to suit varying brick heights, providing flexibility across different façade designs.
Thin brick units can be arranged in a wide range of traditional and contemporary bond patterns. Carefully controlled horizontal and vertical joint spacing allows for mortar pointing, delivering the authentic appearance of traditional brickwork while benefiting from the speed, weight reduction, and performance advantages of a modern brick cladding system.
The brick slips and profiled aluminium support section illustrated represent just one configuration of the IFL EVOLUTION™ Thin Brick Façade System. Each project is individually assessed, allowing us to design both the brick format and installation system to suit specific façade structures, structural interfaces, and curtain wall requirements. This ensures seamless integration with modern building envelopes while maintaining the authentic appearance of traditional brickwork.
Key Features of the IFL EVOLUTION™ Brick Veneer Cladding System
1. Ease of Installation
The mechanically fixed brick cladding system is faster and less weather-dependent than traditional bricklaying. Installation is cleaner, more controlled, and significantly reduces programme time and associated labour costs.
2. Benefits of Fired Clay Brick
EVOLUTION™ combines the timeless aesthetic of natural fired clay brick with the durability, strength, and long-term performance expected of a high-quality exterior wall material.
3. Versatile & High Performance

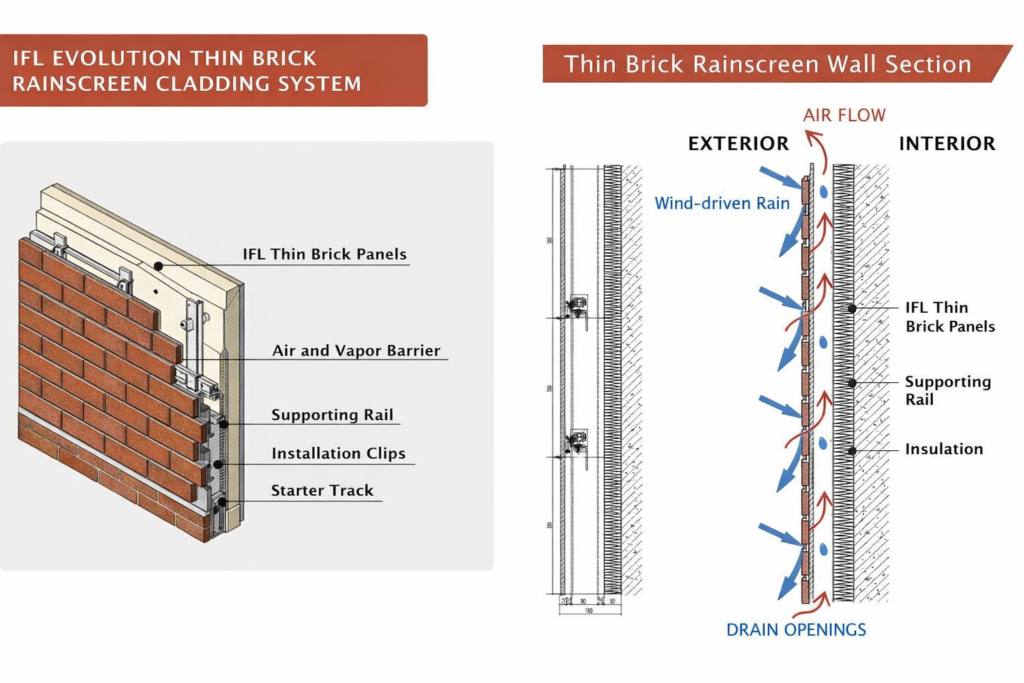

The system can be installed onto various substructures, including steel, concrete, and curtain wall assemblies. It can also be integrated within a rainscreen façade system to enhance weather protection and contribute to improved thermal performance and reduced overall energy consumption.

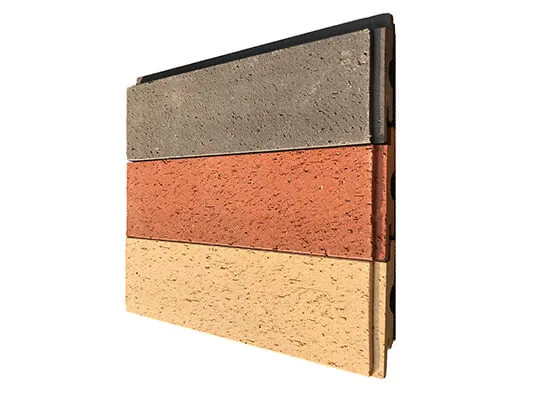

Dimensions of EVOLUTION Facade Brick:
- Length: 230 -290 mm
- Height: 60-100mm
- Thickness: 20-30 mm
(Length, height and thickness can vary depending on the corresponding proportion.)
The facade brick is specially produced to fit IFL’s Brick Cladding Sub-Structure System. The Evolution Brick can be procured in most colors, textures, and also surface finishes can be also applied in this product.
Custom brick is available on request.
Customized Brick Tiles For Cladding System
IFL – EVOLUTION customized dry-hanging facade brick tiles series that match the corresponding supporting framing of brick cladding systems.
